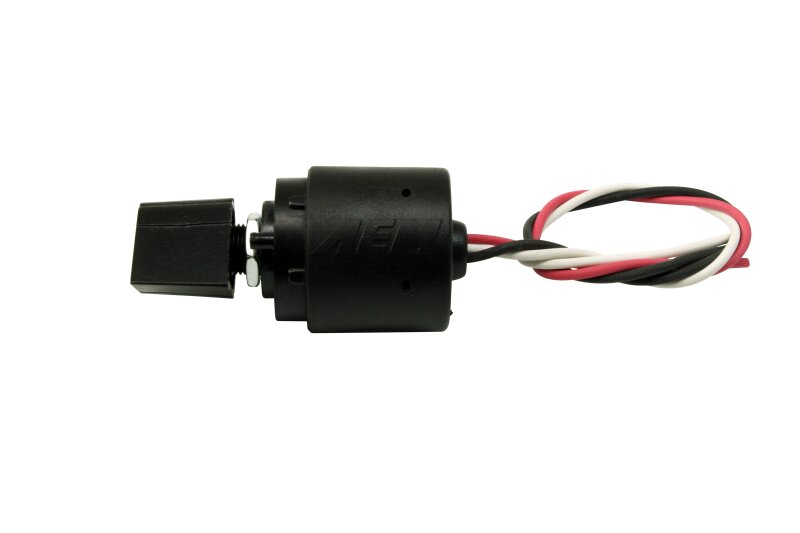

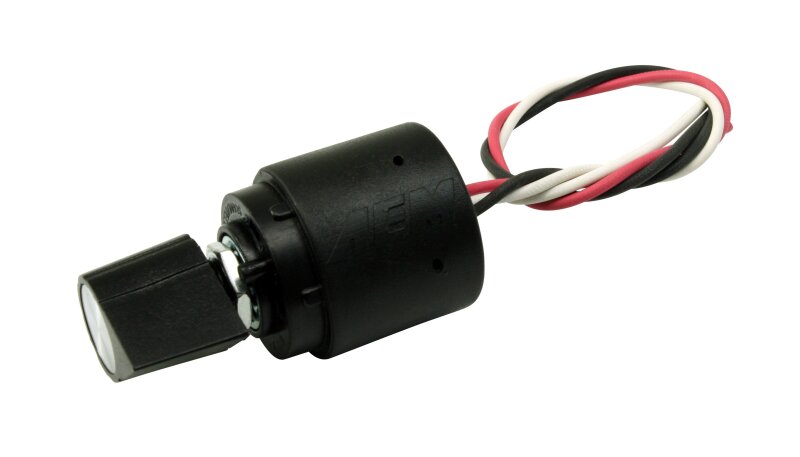

The Universal 12 Position Trim Pot is for use on virutally any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc.

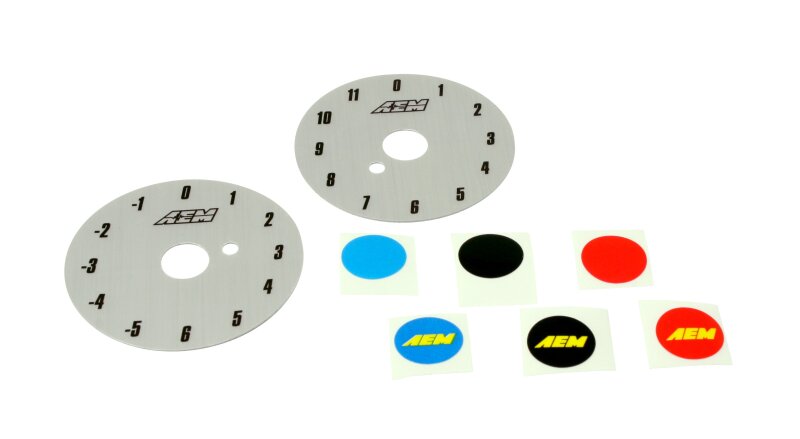

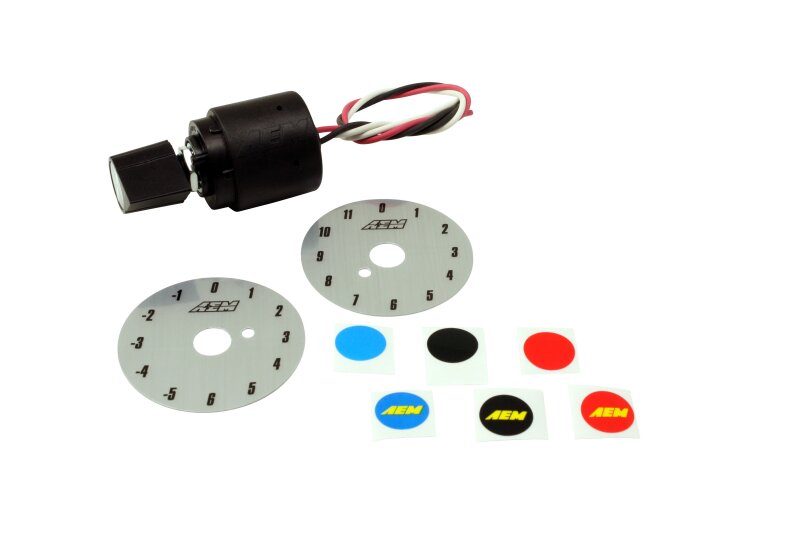

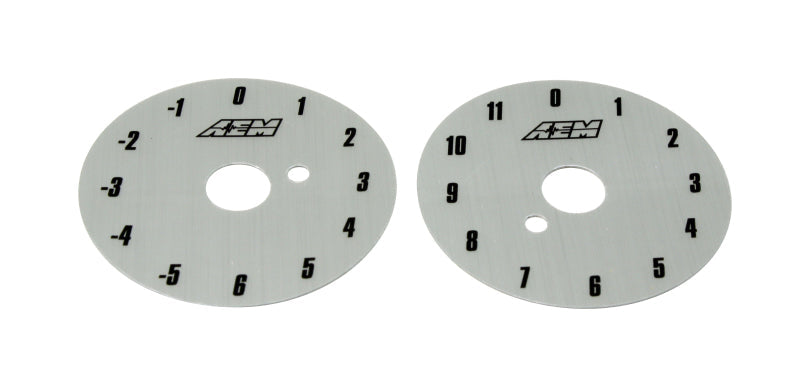

The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals.
12 Position Trim Pot Performance Specifications:
Total Resistance: 14.3K?
Cycles Minimum: 10,000
Positions: 12
Degree Rotation: 330
Mounting: 3/8" Hole
Jam Nut: 1/2" Hex
Knob Set Screw: 1/16" Allen
Supply Current: 5 Vdc
Output: .See table below

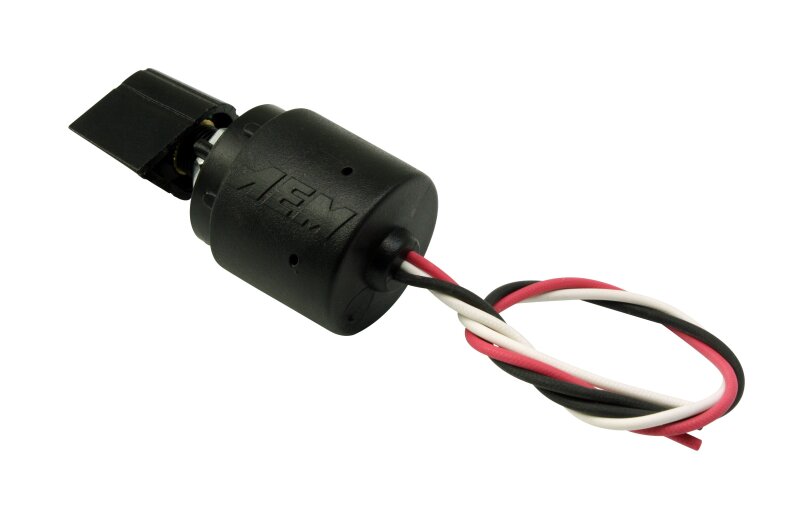

Elec. Termination: Overmold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)
